LJ350 Al Tube Line, Aluminum Tube Line
|
If you are looking for aluminum tube production lines to produce round tubes and multi-channel pipes, then the LJ350 range of continuous rotary extrusion line will be your optimum choice. It can extrude consistent quality aluminum tubes for use in air conditioning systems for home or automobile use. Adopting aluminum rod with diameter of 12mm as the feedstock, the continuous rotary extrusion machine can produce square shaped aluminum tubes with size from 2×16mm to 3×50mm. The continuous extrusion technique makes sure all extruded aluminum pipes have uniform density and smooth surface. LJ350 Continuous Extrusion Machine for Aluminum Tube, Busbar, Conductor, Aluminum Profile |
 |

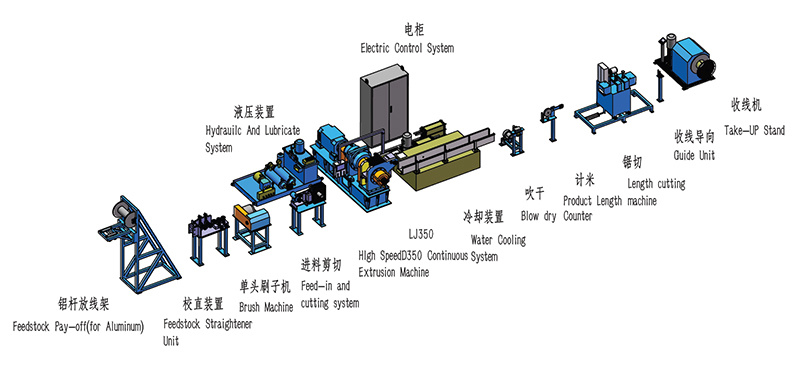

Diagram of production line
Technical Specifications
| Model | LJ350 |
| Nominal Diameter of Extrusion Wheel（mm） | Φ350 |
| Power of Main Motor（kW） | 200 |
| Feed Stock Diameter（mm） | Φ15 |
| End Product Max. Width（mm） | 80 |
| End Product Sectional Area Range（mm²） | 15-600 |
| Average Output（kg/h） | 400 |
