LJ350T Continuous Extrusion Machine for Aluminum Bus Bar
Technical Specifications
| Model | LJ350T |
| Nominal Diameter of Extrusion Wheel（mm） | Φ350 |
| Power of Main Motor（kW） | 200 |
| Feed Stock Diameter（mm） | Φ12，Φ15 |
| Product Max. width and diameter（mm） | Busbar 80; Round wireφ40 |
| Sectional Area Range（mm²） | 15-600 |
| Average Output（kg/h） | 350-550 |

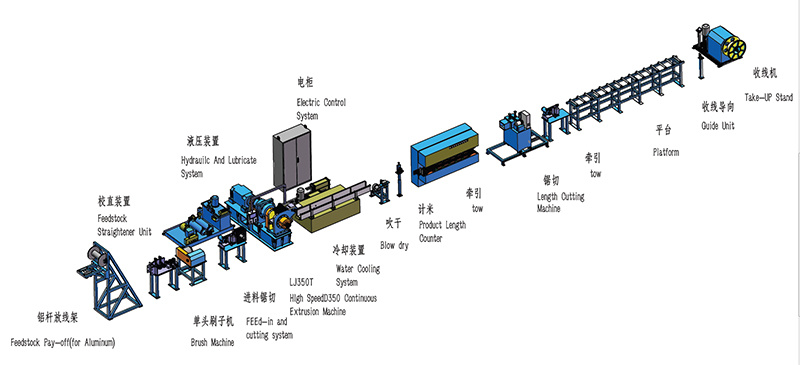

Diagram of production line
