Continuous Extrusion Machine for Alloy Copper Conductor

Our range of continuous rotary extrusion line is mainly made up of the feedstock pre-processing units to fulfill payoff, straightening, cleaning, and cutting purposes; the continuous rotary extrusion machine which is the main functional unit; the post-processing equipment such as cooling machine, anti-oxidation system, drying system, metering device, payoff unit, etc.; as well as the control system.

As a new kind of processing technique for copper alloy extrusion molding, continuous rotary extrusion line effectively simplifies production process. Also, it improves the copper rod's plasticity and reduces its deformation resistance, which makes the blank easy for extrusion. These make sure our copper alloy continuous extrusion equipment has high production efficiency and reduced energy consumption.

The especially designed oxidation protection device for the copper alloy wire extrusion machinery ensures high material quality, by preventing surface oxidation of the copper rod while being heated.

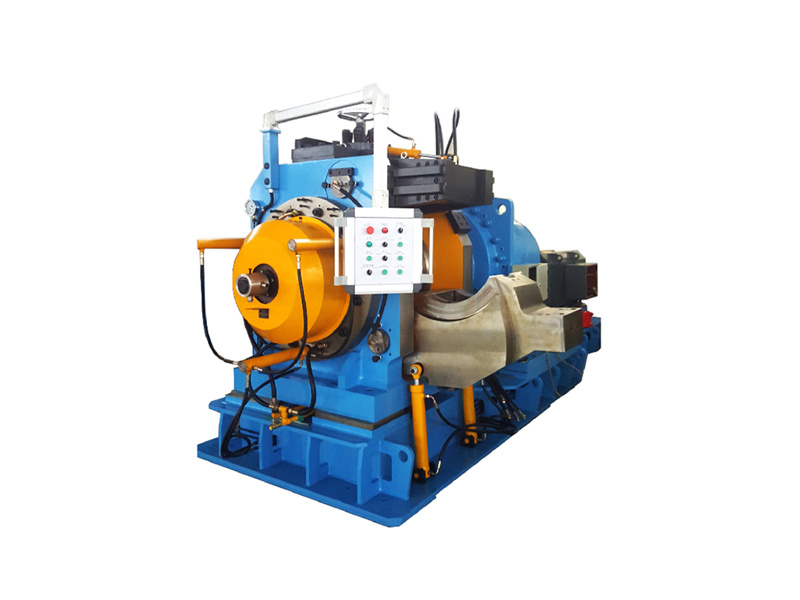

TJ550A Continuous Extrusion Machine for Alloy Copper Conductor

The continuous rotary extrusion line is especially designed for producing copper alloy trolley wires. The continuous extrusion machine, the key component of the production line, adopts the new die cavity featuring modular construction and high temperature resistance so as to extrude copper alloy products with the tensile strength up to 265N/mm2. Through deep processing one more time, the tensile strength can reach 650N/mm2.

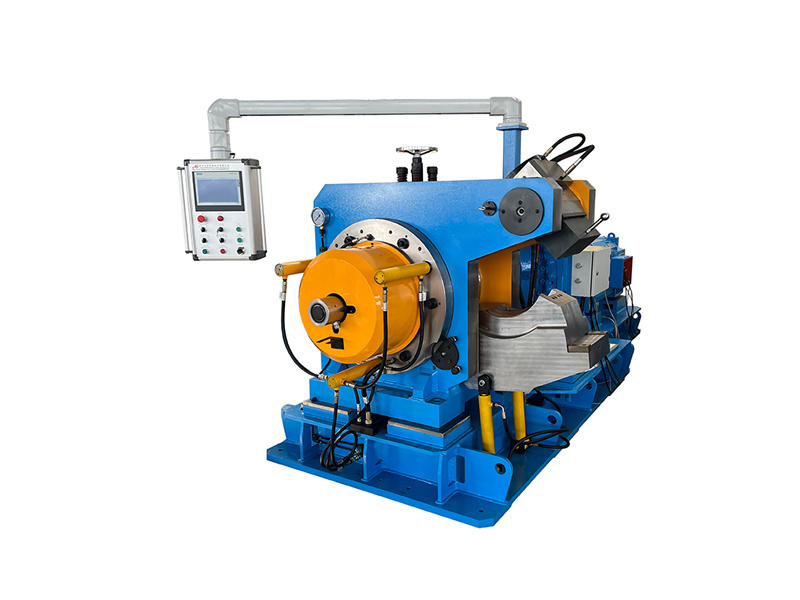

TJ500 Continuous Extrusion Machine for Alloy Copper Conductor

The TJ500 continuous rotary extrusion line supports producing not only busbar but also other copper alloy conductors such as the copper bar. The extruded products are extensively used as the contact wire for electrical systems, power distribution cabinets, and electric railways. In addition, the continuous rotary extrusion equipment is also optimum for extrusion of copper alloy contact wires, including copper tin, copper silver and copper magnesium alloy with low magnesium content types.

TJ400A Continuous Extrusion Machine for Alloy Copper Conductor

The TJ400A continuous rotary extrusion line for copper alloy wire adopts non-ferrous metal continuous rotary equipment as the main unit to produce alloy wires, such as the contact wires made of copper silver alloy and copper tin alloy.
