Continuous Extrusion Machinery for Copper High Speed Railway Conductor

TJ400A continuous extrusion machine adopts 20mm up-casting oxygen free copper rods, which can be directly extruded to copper bars with maximum width of 170mm via dies. These copper products are usually used to make the input and output terminals of transformers, large high and low voltage switchgears and electric appliances. By changing dies, copper bars with diameters of 12-70mm can be produced.

TJ500A continuous extrusion machine adopts 22mm up-casting oxygen free copper rods, which can be directly extruded to large and super large copper bars and stripes with maximum width of 220mm via dies. These copper products are usually used to make the input and output terminals of large transformers, large high and low voltage switchgears and electric appliances, and strip blanks of precision copper strips. By changing dies, copper bars with diameters of 15-85mm can be produced.

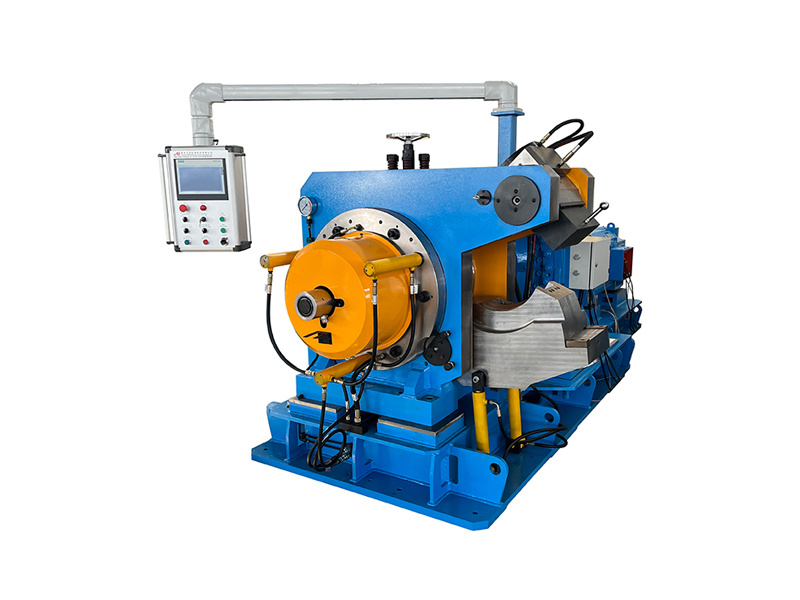

TJ550A Continuous Extrusion Machine for Copper High Speed Railway Conductor

The continuous rotary extrusion line is especially designed for producing copper alloy trolley wires. The continuous extrusion machine, the key component of the production line, adopts the new die cavity featuring modular construction and high temperature resistance so as to extrude copper alloy products with the tensile strength up to 265N/mm2. Through deep processing one more time, the tensile strength can reach 650N/mm2.

TJ400A Continuous Extrusion Machine for Copper High Speed Railway Conductor

The TJ400A continuous rotary extrusion line for copper alloy wire adopts non-ferrous metal continuous rotary equipment as the main unit to produce alloy wires, such as the contact wires made of copper silver alloy and copper tin alloy.
