LJ300AT Continuous Extrusion Machine for Aluminum Bus Bar
Technical Specifications
| Model | LJ300AT |
| Nominal Diameter of Extrusion Wheel（mm） | Φ300 |
| Power of Main Motor（kW） | 110 |
| Feed Stock Diameter（mm） | Φ9.5,Φ12 |
| Product Max. width and diameter（mm） | Flat wire30; Round wireΦ20 |
| Sectional Area Range（mm²） | 10-150 |
| Average Output（kg/h） | 180-270 |

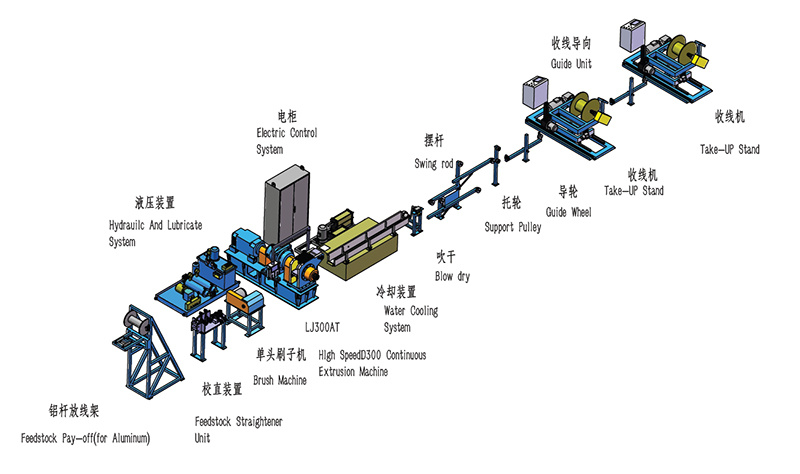

Diagram of production line
