Technical Specifications
| Model | LB350B |
| Nominal Diameter of Extrusion Wheel（mm） | Φ350 |
| Power of Main Motor（kW） | 200 |
| Aluminum Rod Diameter（mm） | Φ9.5*2 |
| Diameter of Steel Wire（mm） | 4～28 |
| Sheath thickness (mm) | 0.6～3 |
| Sheath outer diameter (mm) | 6～30 |
| Max. Production Speed（m/min） | 60 |

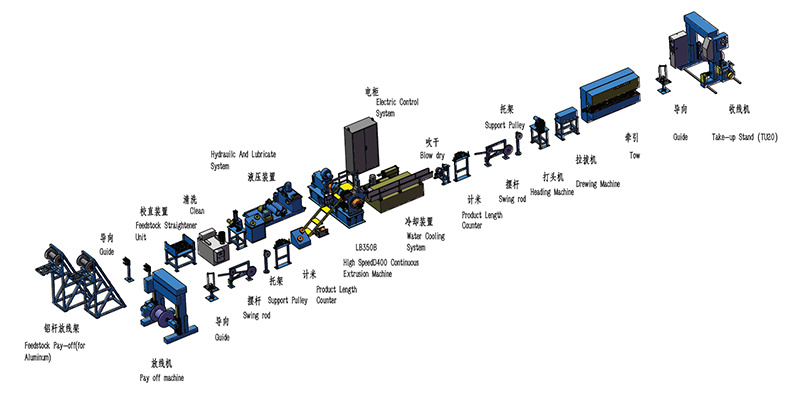

Diagram of production line
